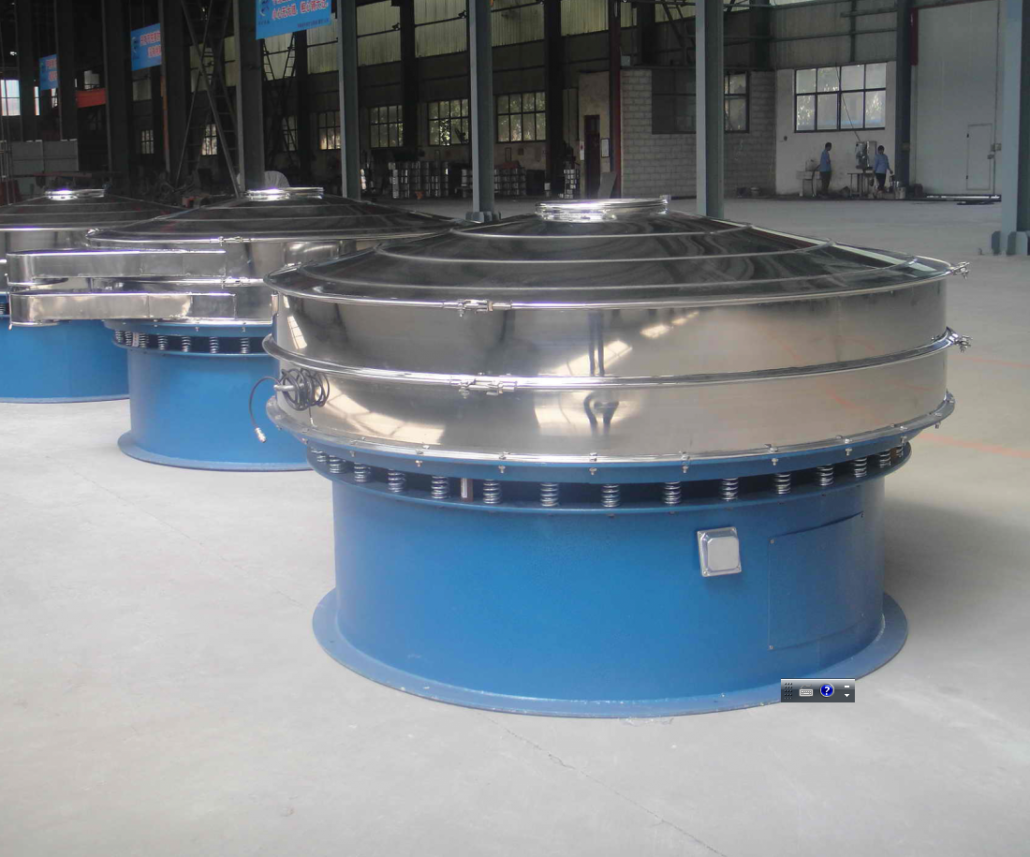

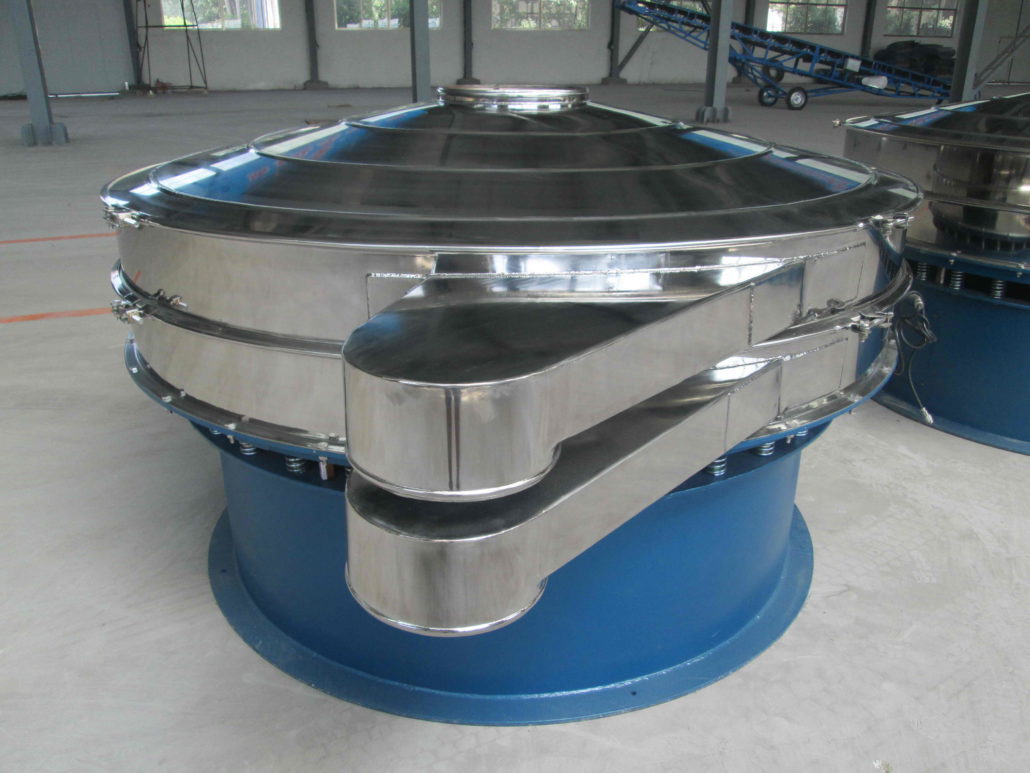

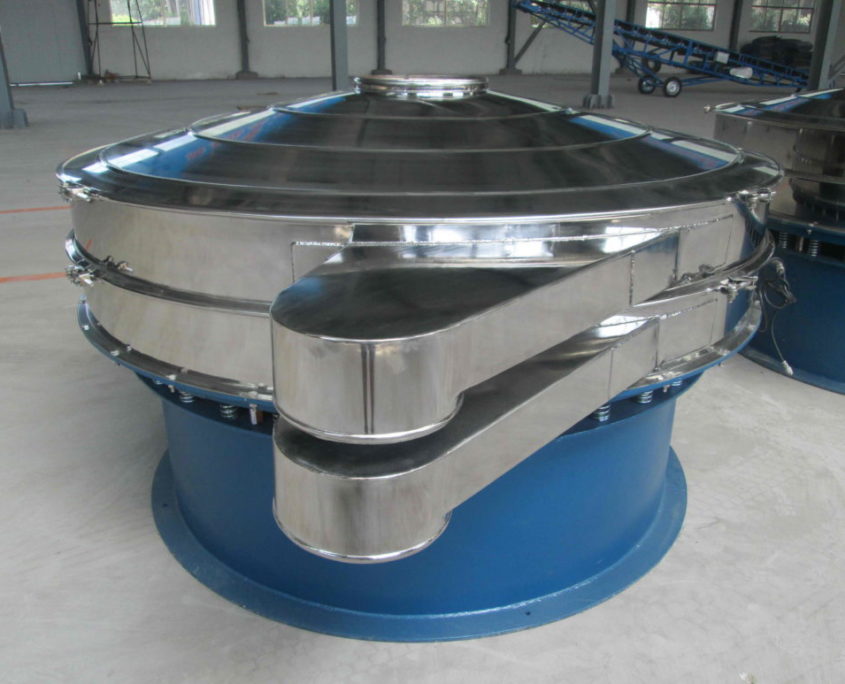

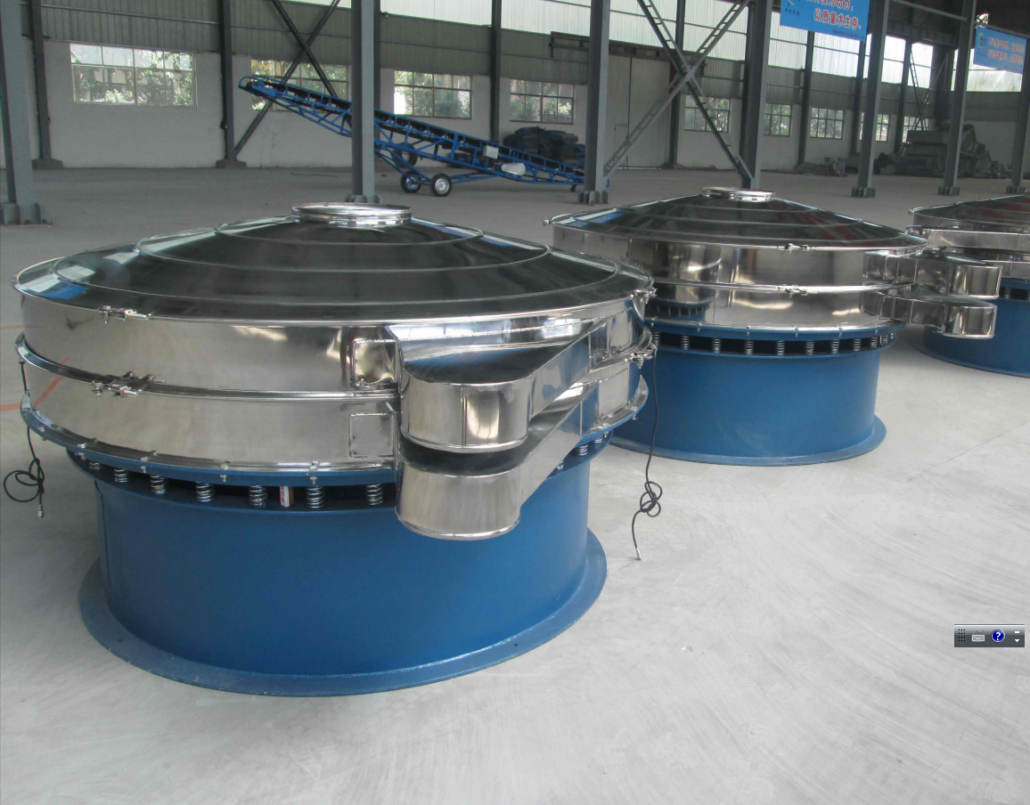

XZ Round Screener is a kind of special and high precision screen and separator machine. The round screener is generally used for kinds of dry, wet and geometrical shapes material for sieving and separating. The granulation, powders and liquid can be separated into different size continuously through the different sieve mesh to achieve the material needed.
Scope of Application:
Round screeners is widely used in chemical, medical, plastic, food, mining, environmental, grinding, ceramic, paper making industry and so on.
Food: Sugar, salt, alkali, gourmet, milk powder, soybean milk, yeast, juice, soy and vinegar.
Paper making: coating, coated slurry, black and white liquid, liquid waste, paper making waste water, water reclamation.
Metallurgy: titanium oxide, zinc oxide, electromagnetic material, metal powder and welding powder.
Medical: traditional Chinese medicine powder, traditional Chinese liquid, western medicine powder, western medicine liquid, Chinese and western medicine particles.
Environmental:rubbish, waste oil, foods waste water, waste water processing.
Working Principle

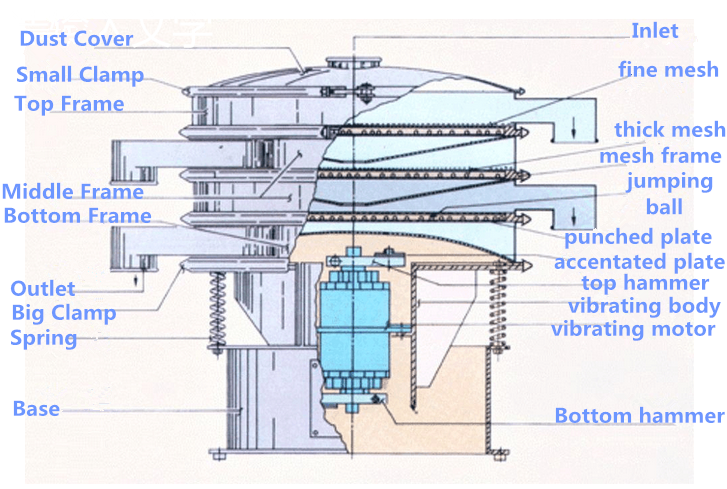

The round screeners has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into sieve mesh and make the material diffuse outward gradually. Because of that, we call it round screeners machine. The round screeners has the advantage of long running track and high-usage sieve. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.

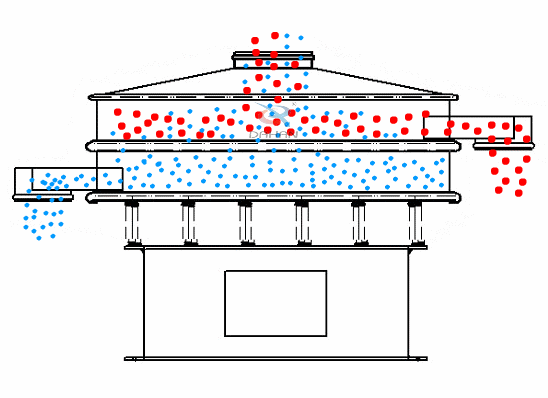

After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the sieve rotary moving. The screeners frame make reciprocating motion continuously under the shaking of motor and forward the screeners mesh move cycling. The material on screeners mesh made directional movement with sieve box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed.
Round screeners has a totally enclosed structure with high performance, low noise, free of dust and liquid free-running property.
1.High efficiency, reasonable design, suitable for separating any powders, pellet or particles.
2. Replace the screen easily.
3. Totally enclosed structure, never jam, no powder flying, the powder size can be separated between 500 mesh and 0.028 mm.
4. Remove the impurity or grading automatically and works continuously.

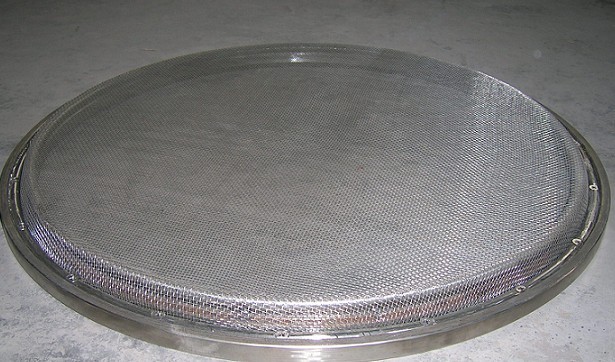

5. Unique screen frame design, wearable screen mesh, just 3-5min needed to replace the screen mesh.
6. Small volume, move easily.
7. The highest layers of the screen can be reached 5 layers. But 1-3 layers are suggested.
To choose the most  suitable model for you ,please provide us with more material details as the followings:
1.Material:
-Material name:_____
-Feeding size:_____mm
-Material density:_____t/m3
-Material distribution:_____%
-Separation destination:_____
2.Screen machine
-Capacity:_____t/h
-Screen deck: _____
3.Particle size distribution of each layer:Â
-Opening size:_____mm
-Construction material:_____
